DoSlot 1105 11000KV Motor
|
Category: |
New Arrivals, BLDC (Motors), BLDC (Motors)/ESCs, Shop |
|
SKU: |
DS-1105.11000 |
|
Price: |
$30.00 |
|
Motors: |
3200Kv |
|
{{variant.name}}:
|
{{opt.name}}
{{opt.name}}
|

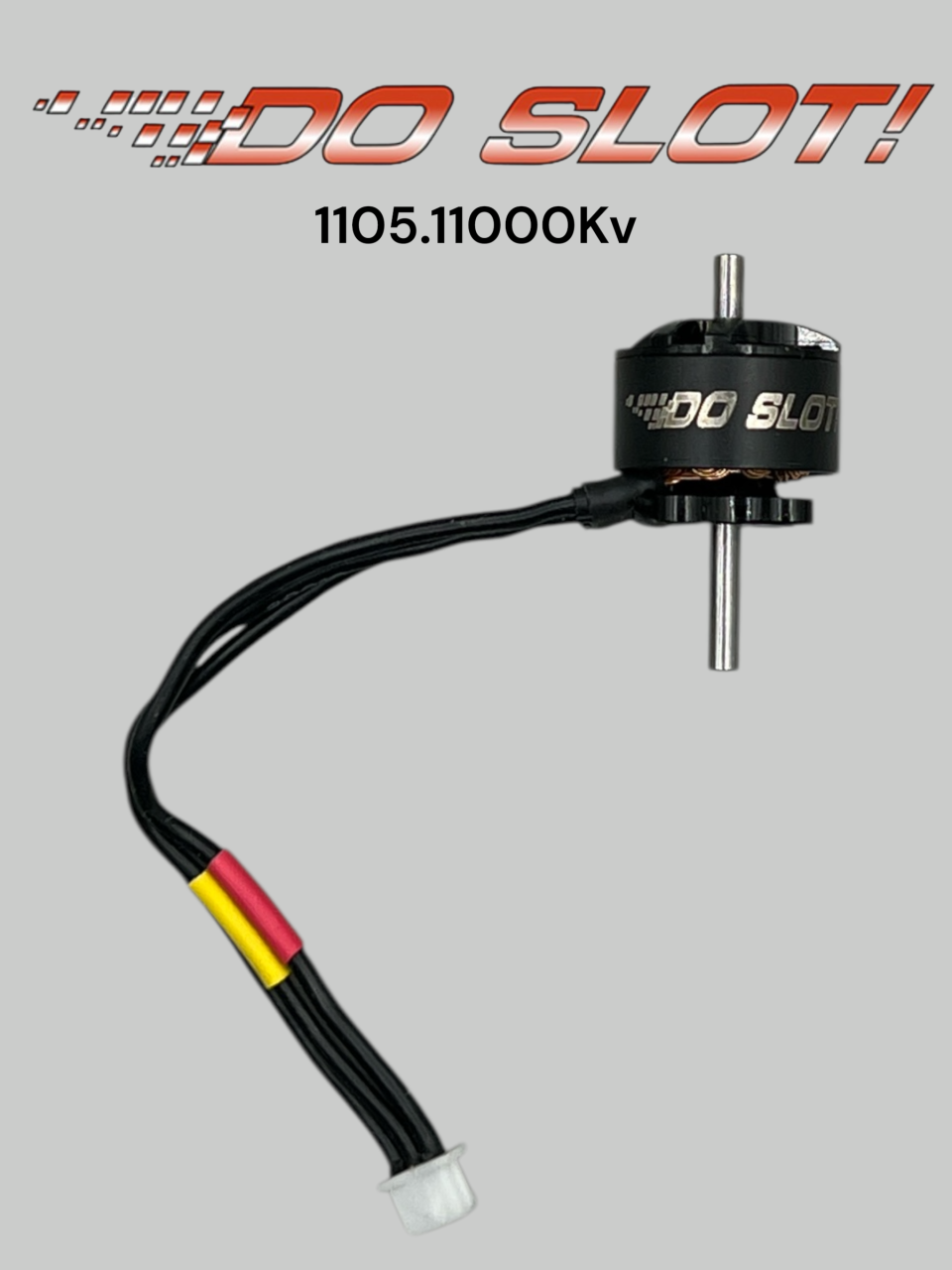

DoSlot Brushless Motor 1105-11000Kv (12 magnet)
2mm motor shaft for the motor pinion
-Motor Size: approx. 14mm x 13mm
-Stator Diameter: 11mm
-Stator Height: 5mm
-Configuration: 9N12P
-Pinion Shaft Diameter: 2.0mm x 10mm long
-Rotor Side Shaft Diameter: 2mm x 4mm long
-Motor Mounting: 9mm x 9mm
-Motor Cable: 26#AWG 85mm long with a JST 1.25 3P male connector on the end of the wiring.
-Ball Bearings
-Black in color
-Weight: approx. 6.2g
Motor Updates:
- Motor is sealed thanks to special knurling
- Thicker motor cables, marked with yellow and red heat shrink tubing
- Improved shaft mounting
Motor Screws are NOT included.
Make sure the mounting screws DO NOT contact the motor winding.
It is up to the user to observe BLDC heat, ESC compatibility to preventing cogging and use of suitable ratios to prevent ESC and/or BLDC failures.
