X89 Brushless Mafia Single Sided (Remora Based) ESC

This ESC is a development from X89 that is a non-adjustable ESC, utilizing the same components and firmware as the Remora. Configured as a single sided board the ESC simplifies mounting over the dual sided version.

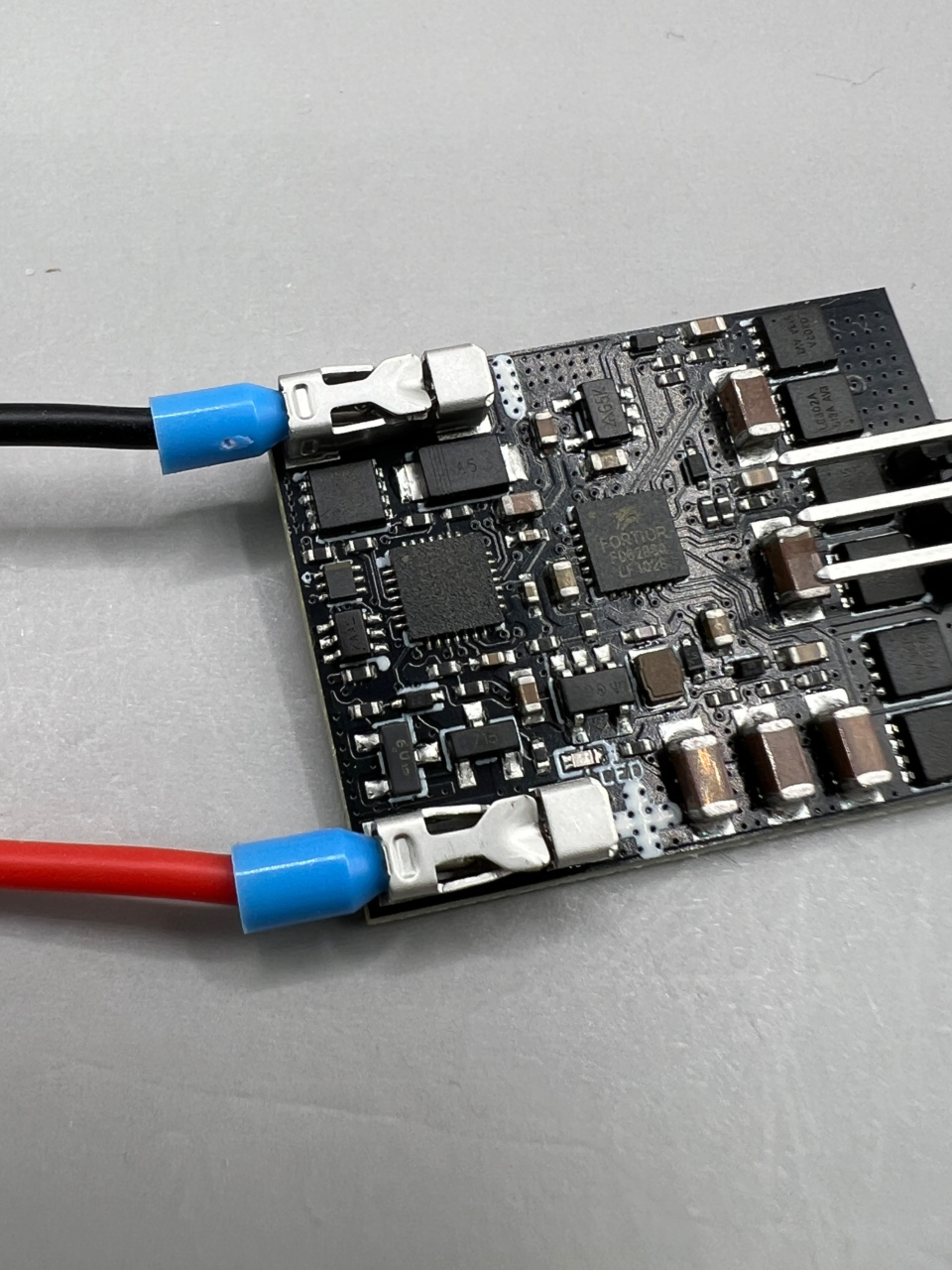

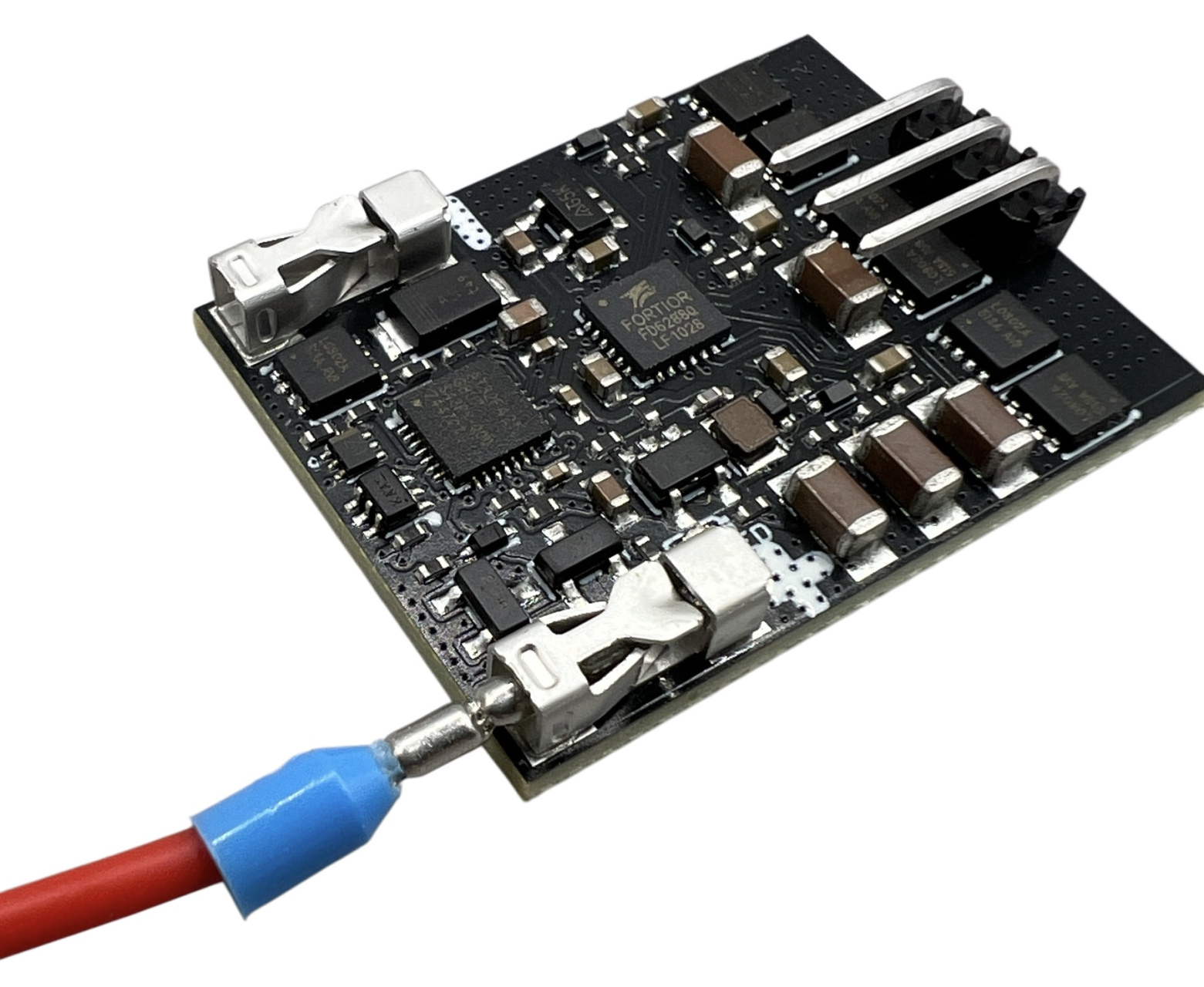

No need to solder! - This ESC features plug-n-play connectivity suited for select KC Racing and Brushless Mafia motors.

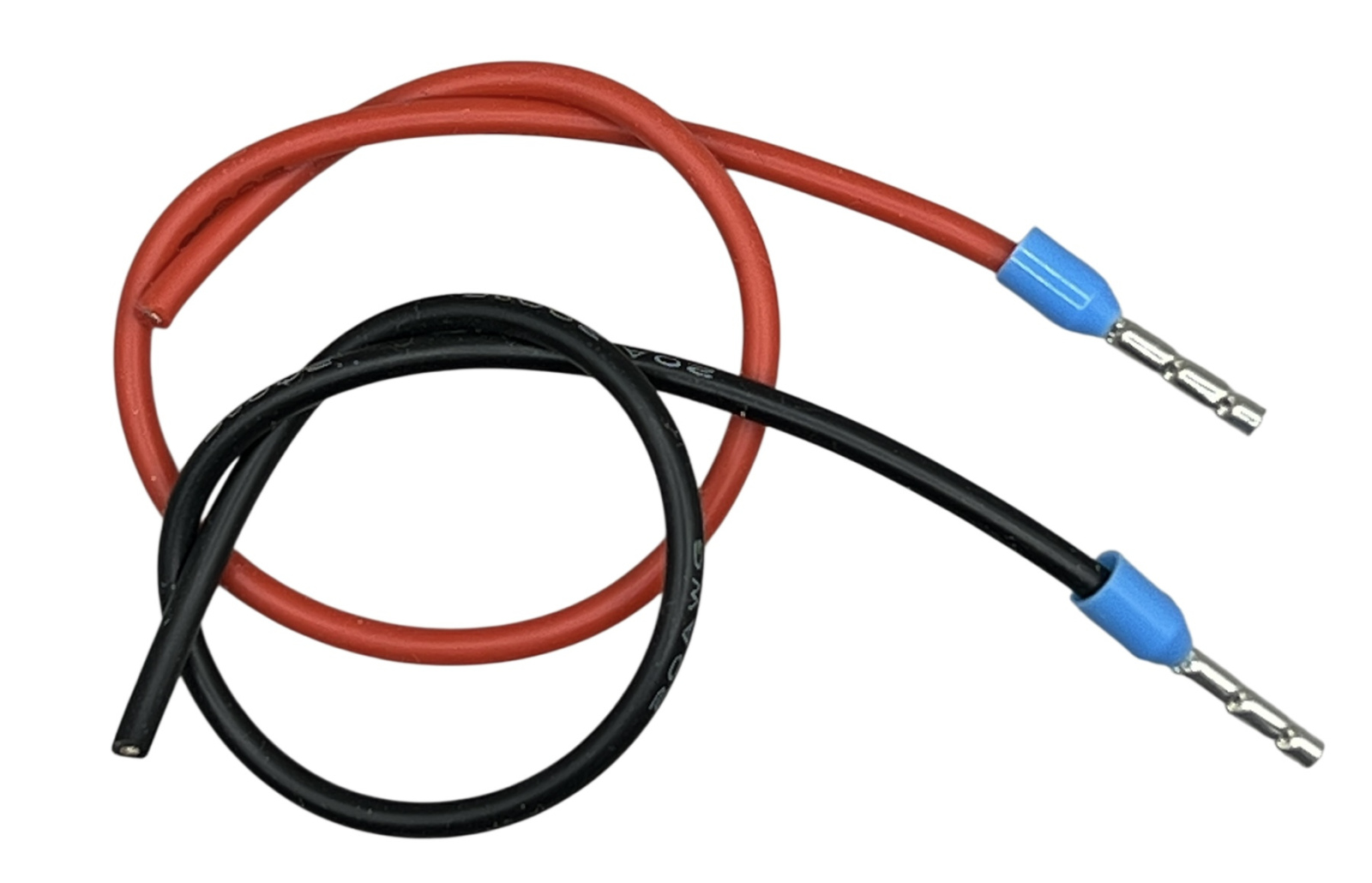

Track pickup leads are provided, uniquely installed with barrel connectors so the ESC can be installed and removed easily from your car.

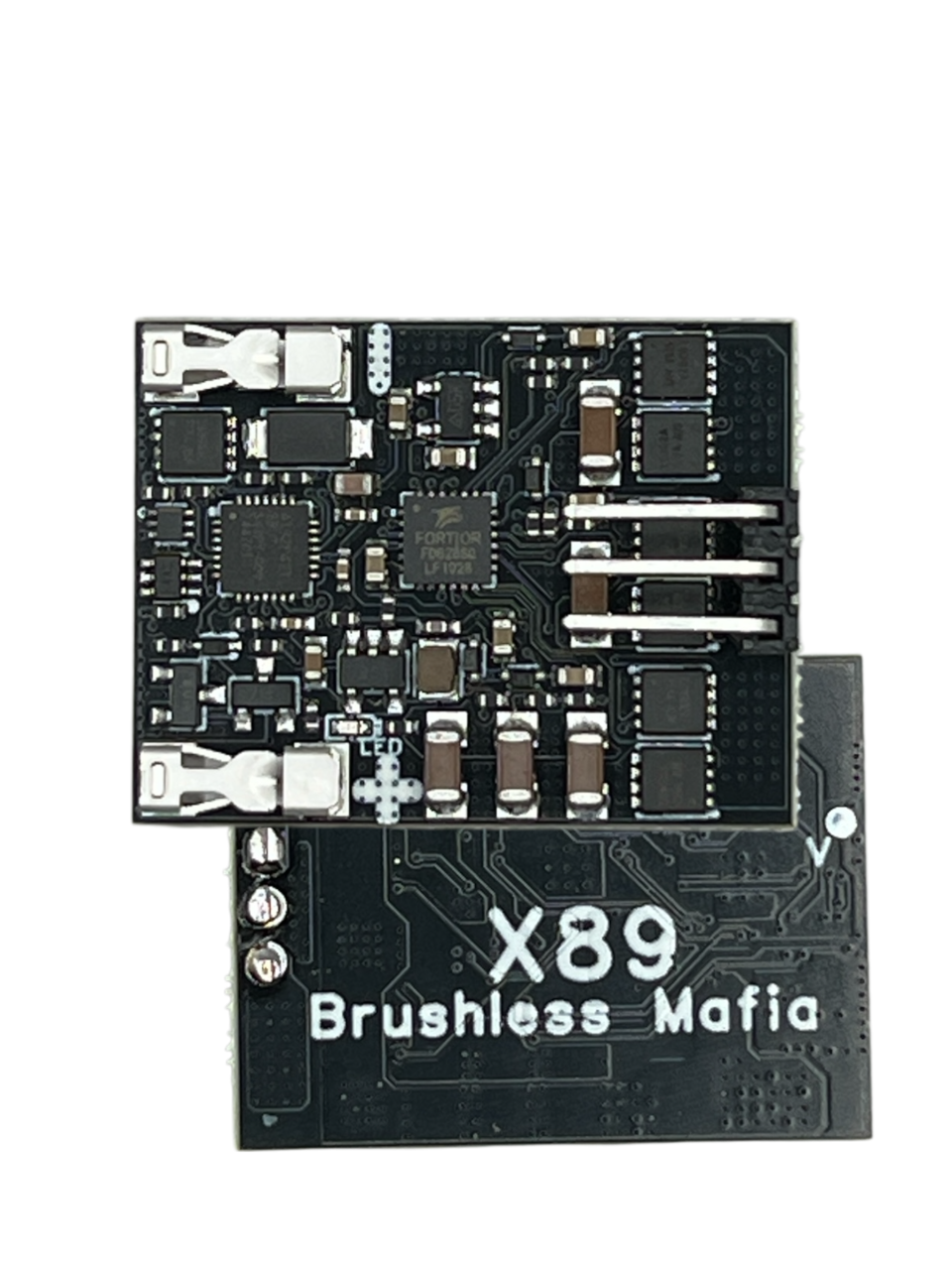

Configuration: Single Sided Board

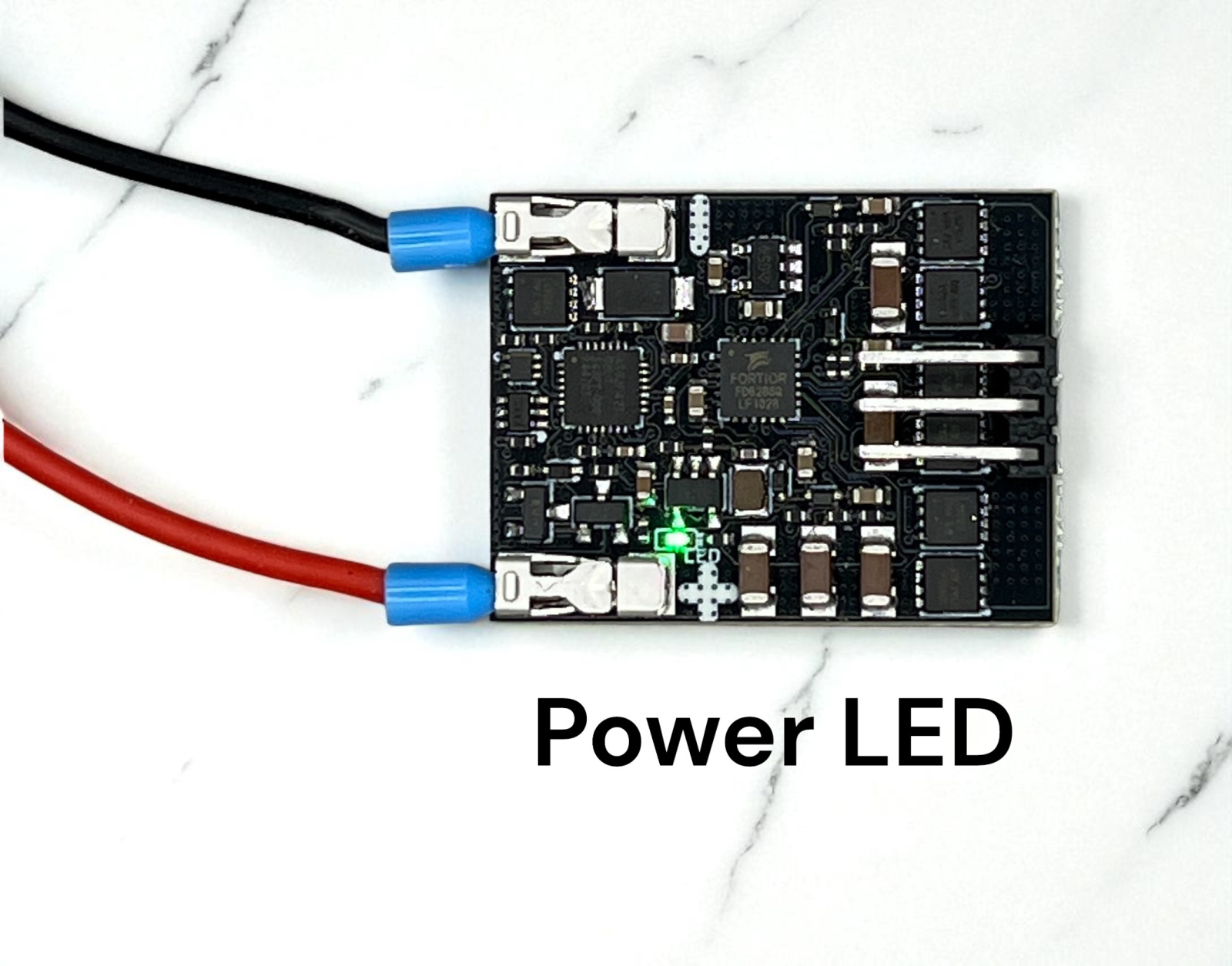

Visual Indicator: Green LED for power applied
Size: 23.2mm x 30.1mm
Weight: 3.8g
Maximum permissible voltage: 16.5v
ESP32 Firmware: Version 14.5
Motor selection: 2,000Kv to 6,500Kv - 9N12P (motor selection based upon firmware settings)

Download X89 Brushless Mafia ESC Manual Here

Every X89 Brushless Mafia ESC is fully QC tested for assembly quality, firmware loading, and brushless motor

operation. This ensures that each unit is 100% functional and free of manufacturing defects when shipped.


Failures that occur after shipment are not the result of manufacturing defects, but rather from factors such as poor or improper soldering, incorrect installation, unsuitable gear ratios causing excessive heat or cogging, track debris, user modifications, crashes, abuse, or lack of maintenance.

This version of the X89 Brushless Mafia ESC is not intended for use in slot car drag racing.  The firmware settings installed are intended for road racing.

If you are interested in slot car drag racing, we recommend using an X89Drag or Talon 25 drag ESC that is designed to handle the demands of this application.
