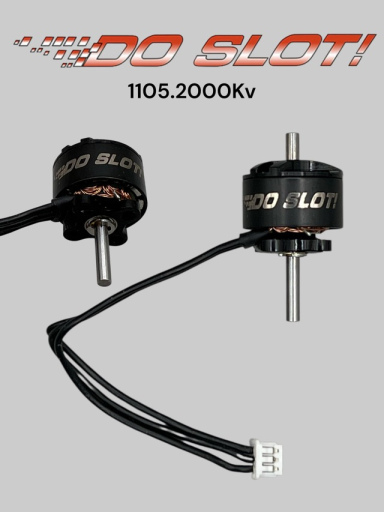

DoSlot Brushless Motor 1105-2000Kv (12 magnet)

2mm motor shaft for the motor pinion
E-Clip on Shaft


-Motor Size: approx. 14mm x 13mm
-Stator Diameter: 11mm
-Stator Height: 5mm
-Configuration: 9N12P
-Pinion Shaft Diameter: 2.0mm x 10mm long
-Rotor Side Shaft Diameter: 2mm x 4mm long
-Motor Mounting: 9mm x 9mm
-Motor Cable: 26#AWG  85mm long with a JST 1.25 3P male connector on the end of the wiring.
-Ball Bearings
-Black in color
-Weight: approx. 6.2g

Motor Screws are NOT included.
Make sure the mounting screws DO NOT contact the motor winding.

It is up to the user to observe BLDC heat, ESC compatibility to preventing cogging and use of suitable ratios to prevent ESC and/or BLDC failures.
