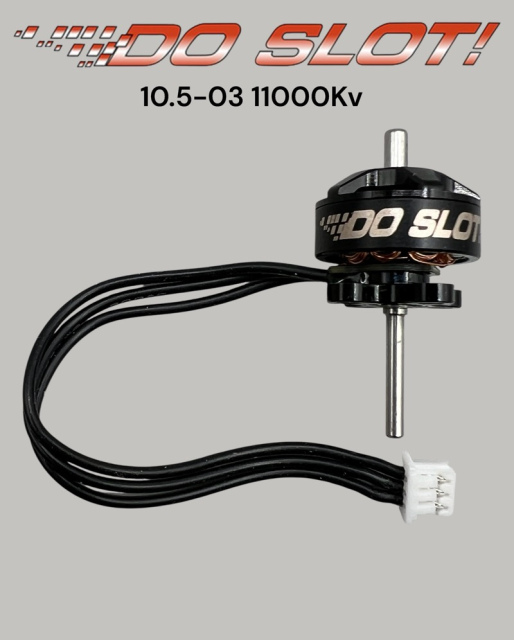

DoSlot Brushless Motor 10.5-03 11000Kv (12 magnets)

- 2mm motor shaft for the motor pinion reduced to 1.5mm

This DoSlot brushless motor is significantly smaller than all other DoSlot 1105 motors. With a diameter of 13.2mm, it falls precisely between the 10xx and 11xx sizes, making it perfectly suited for "ISRA" Formula Inline slot cars.

Features include:
- 2mm shaft, reduced to 1.5mm for the pinion gear
- 2mm bearings despite the small size
- Mounting hole spacing is identical to the DoSlot 1105 motor

-Motor Size: approx. 13.2mm x 11mm
-Stator Diameter: 10.5mm
-Stator Height: 3mm
-Configuration: 9N12P
-Pinion Shaft Diameter: 1.5mm x 10mm long
-Rotor Side Shaft Diameter: 2mm x 4mm long
-Motor Mounting: 9mm x 9mm
-Motor Cable: 26#AWG  85mm long with a JST 1.25 3P male connector on the end of the wiring.
-Ball Bearings
-Black in color
-Weight: approx. 4.2g

Motor Screws are NOT included.
Make sure the mounting screws DO NOT contact the motor winding.

It is up to the user to observe BLDC heat, ESC compatibility to preventing cogging and use of suitable ratios to prevent ESC and/or BLDC failures.
