3/32” Reduced Center Rear Axle - w/Flats
|
Category: |
New Arrivals, Axles, Hardware, COMPONENT PARTS, Shop, Carbon Fiber Chassis, Wing Car Chassis |
|
SKU: |
KCR-332RC |
|
Price: |
$5.00 |
|
{{variant.name}}:
|
{{opt.name}}
{{opt.name}}
|

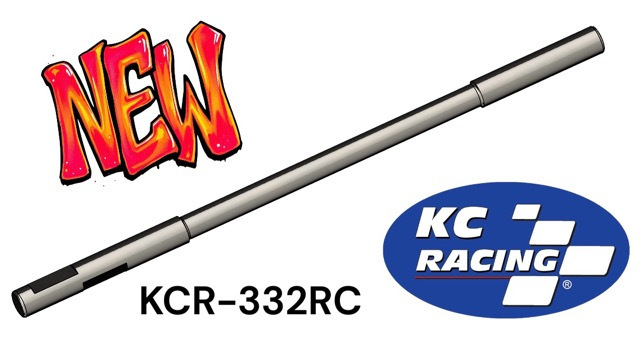

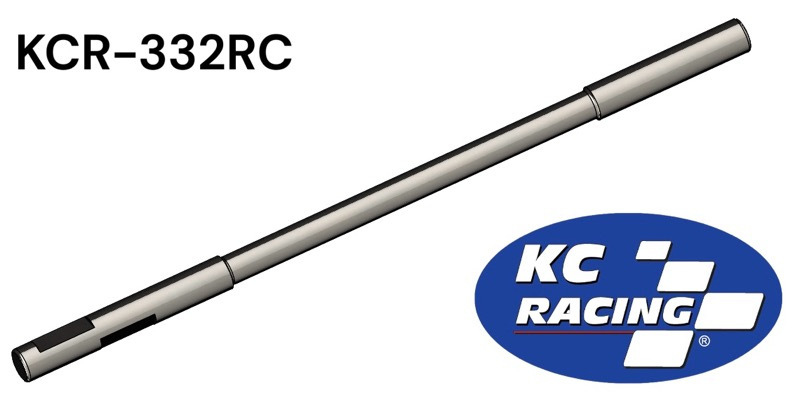

One (1) 3/32” Reduced Center Rear Axle with three Milled Flats, KC Racing (KCR-332RC)
Precision engineered with 40Cr (SAE 5140) steel
The axle is 2.09” [53.18mm] wide.
Weight: 1.5 g

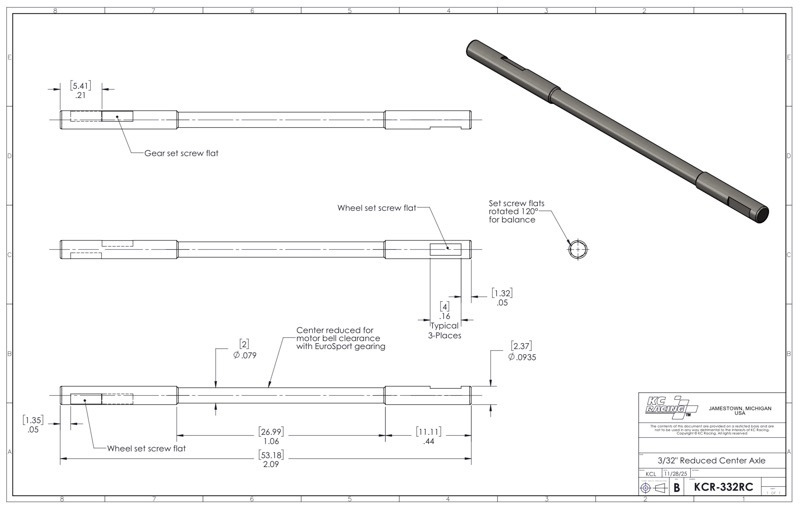

There are three milled slots on 120-degree rotational centers to provide balance with the set screws and eliminate gear or tire spinning. The center of the axle is reduced to 2mm diameter to provide additional motor bell to axle clearance with EuroSport gearing and high Kv 1105/1106 motors.
Designed to fit the following chassis:
- All KC Racing CarbonX and CarbonXPRO Series side winder drive chassis
KC steel wing car chassis
- KCR-WC1
- KCR-WC2
- KCR-WC3
JK Products
- JK C43
- JK C95
Spacers are required outside the bushings or bearings to properly space the set screws on the flats. Typically a .022" (JK-U54) spacer is required.
