1106 6500KV Motor (Gen 2)
|
Category: |
BLDC (Motors), BLDC (Motors)/ESCs, Shop |
|
SKU: |
KCR-1106.6500 (Gen 2) |
|
Price: |
$19.25 |
|
{{variant.name}}:
|
{{opt.name}}
{{opt.name}}
|
Description

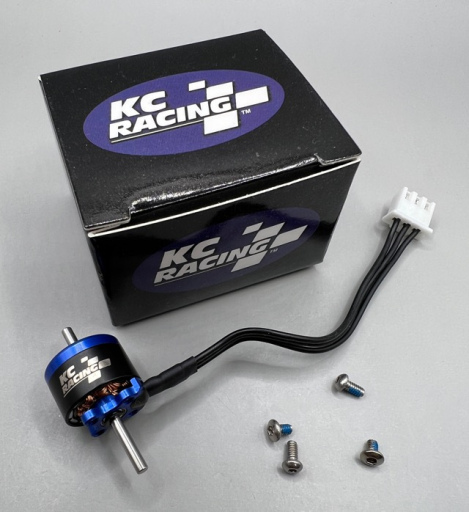

Brushless Motor (BLDC) for Slot Car - 6500KV
Application - Road Course, not for drag racing
Specifications:
- Weight: 7.4g (including wires)
- Motor Size: 14.3mm x 13.7mm
- Stator Diameter: 11mm
- Stator Height: 6mm
- Pinion Shaft Diameter: 2.0mm x 10.00mm long
- Minimum clearance for snap ring on pinion side: 5mm
- Rotor Side Shaft Diameter: 2.00mm x 6.0mm long
- Motor Mounting: 9mm x 9mm
- Motor Cable: 26#AWG 80mm long With an XH 2.54 3P male connector on the end of the wiring.
- NSK Bearings
- 7075-T6 Aluminum Bell
- Multicolor color design
Temperature range - 0˚- +80˚C (32˚ - +176˚F)
RPM @ 12 vdc
6500 KV - 78,000
Update - 7/10/26
Now Includes:
- Two (2) M2x3mm Button Head Stainless Screws with a blue thread lock patch
- Two (2) M2x4 Button Head Stainless Screws with a blue thread lock patch
NOTE: These screws require a 0.9mm 0.35" allen head wrench or driver.
