BLDC Motors / ESCs
1106 6500KV Motor (Gen 2)
|
Category: |
BLDC (Motors), BLDC (Motors)/ESCs |
|
SKU: |
KCR-1106.6500 (Gen 2) |
|
Price: |
$18.50 |
|
{{variant.name}}:
|
{{opt.name}}
{{opt.name}}
|
Description

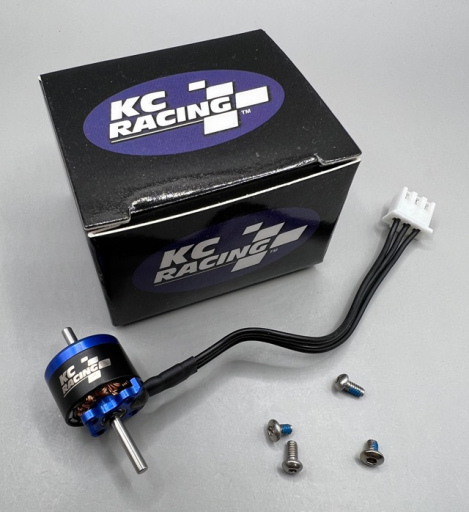

Brushless Motor (BLDC) for Slot Car - 6500KV
Application - Road Course, not for drag racing
What is new in the Gen 2? There is an added 'strap' to the motor base to maintain clearance between the motor wiring and the rotating magnet bell. Also, there is addition of an XH 2.54 3P male connector the end of the wiring. Future ESC wiring will eliminate soldering on the ESC and provide a plug n play option.
Join the brushless revolution in slot car racing. KC Racing has partnered with a world leading manufacturer of BLDC motors to develop an outrunner brushless motor specifically suited for slot car installations. Completely built and tested by the manufacturer this motor receives the rigorous testing of the factory to insure quality and consistency. Certifications of CE and ISO 9001:2015
- Weight: 7.4g (including wires)
- Motor Size: 14.3mm x 13.7mm
- Stator Diameter: 11mm
- Stator Height: 6mm
- Pinion Shaft Diameter: 2.0mm x 10.00mm long
- Minimum clearance for snap ring on pinion side: 5mm
- Rotor Side Shaft Diameter: 2.00mm x 6.0mm long
- Motor Mounting: 9mm x 9mm
- Motor Cable: 26#AWG 80mm long With an XH 2.54 3P male connector on the end of the wiring.
- NSK Bearings
- 7075-T6 Aluminum Bell
- Multicolor color design
Temperature range - 0˚- +80˚C (32˚ - +176˚F)
RPM @ 12 vdc
6500 KV - 78,000
Includes four (4) M2x3mm Allen Head Cap Screws for mounting.
