Motors & ESCs for Road Racing

Application - Road Course or Drag Racing

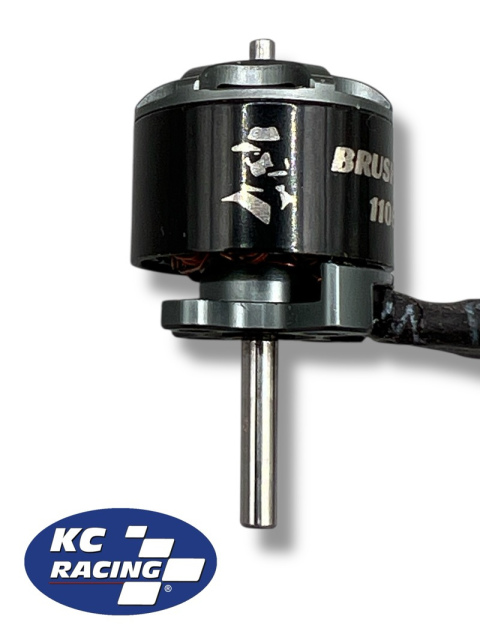

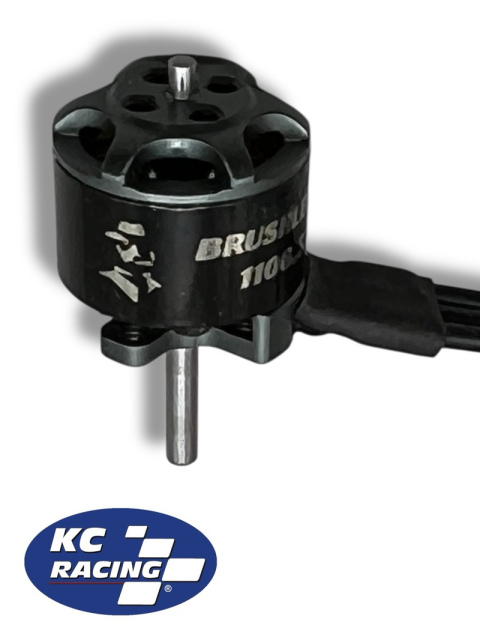

Join the brushless revolution in slot car racing.  KC Racing has partnered with EMax, a world leading manufacturer of BLDC motors to develop an outrunner brushless motor specifically suited for slot car installations.  Completely built and tested by EMax, this motor receives rigorous testing of the factory to insure quality and consistency.


-Weight: 8.0g (including wires and connector)
-Motor Size: 14.5mm x 14.19mm
-Stator Diameter: 11mm
-Stator Height: 6mm
-Rotor: 9N12P
-Wire strap to maintain clearance of the wiring and the bell
-Pinion Shaft Diameter: 2.0mm x 10.00mm long
-Minimum clearance for snap ring on pinion side: 5mm
-Rotor Side Shaft Diameter: 1.50mm x 1.0mm long

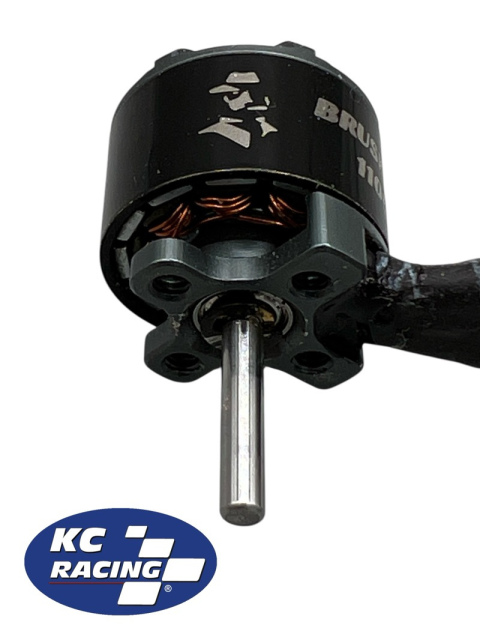

-Motor Mounting: 9mm x 9mm
-Motor Cable: 26#AWG  85mm long with an XH 2.54 3P male connector on the end of the wiring.
-NSK Bearings
-7075-T6 Aluminum Bell
-Multicolor color design

Design Volts – 14.25v
Temperature range - 0˚- +65˚C (32˚ - +150˚F)

RPM @ 12 vdc
4500Kv - 54,000 rpm min

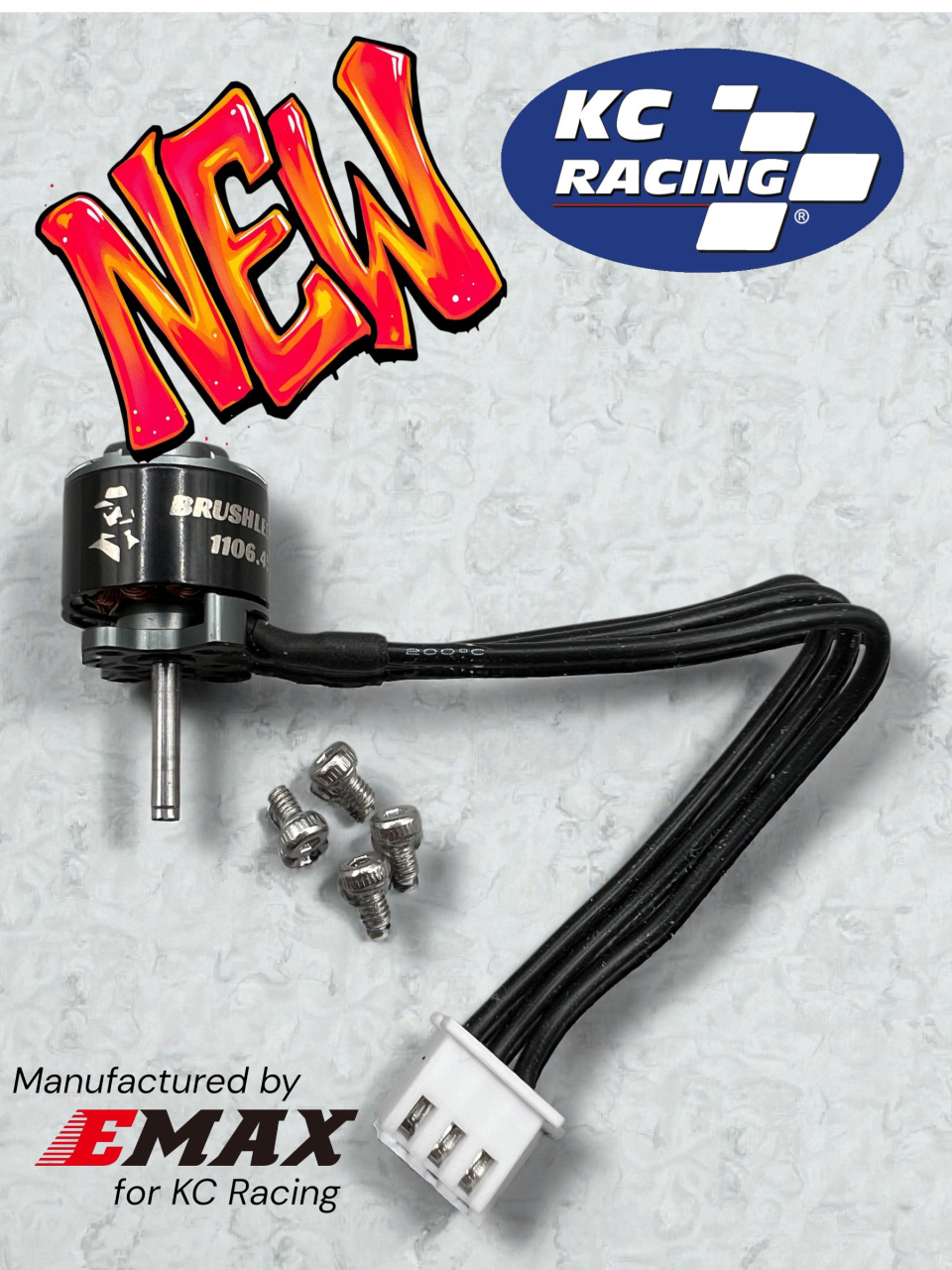

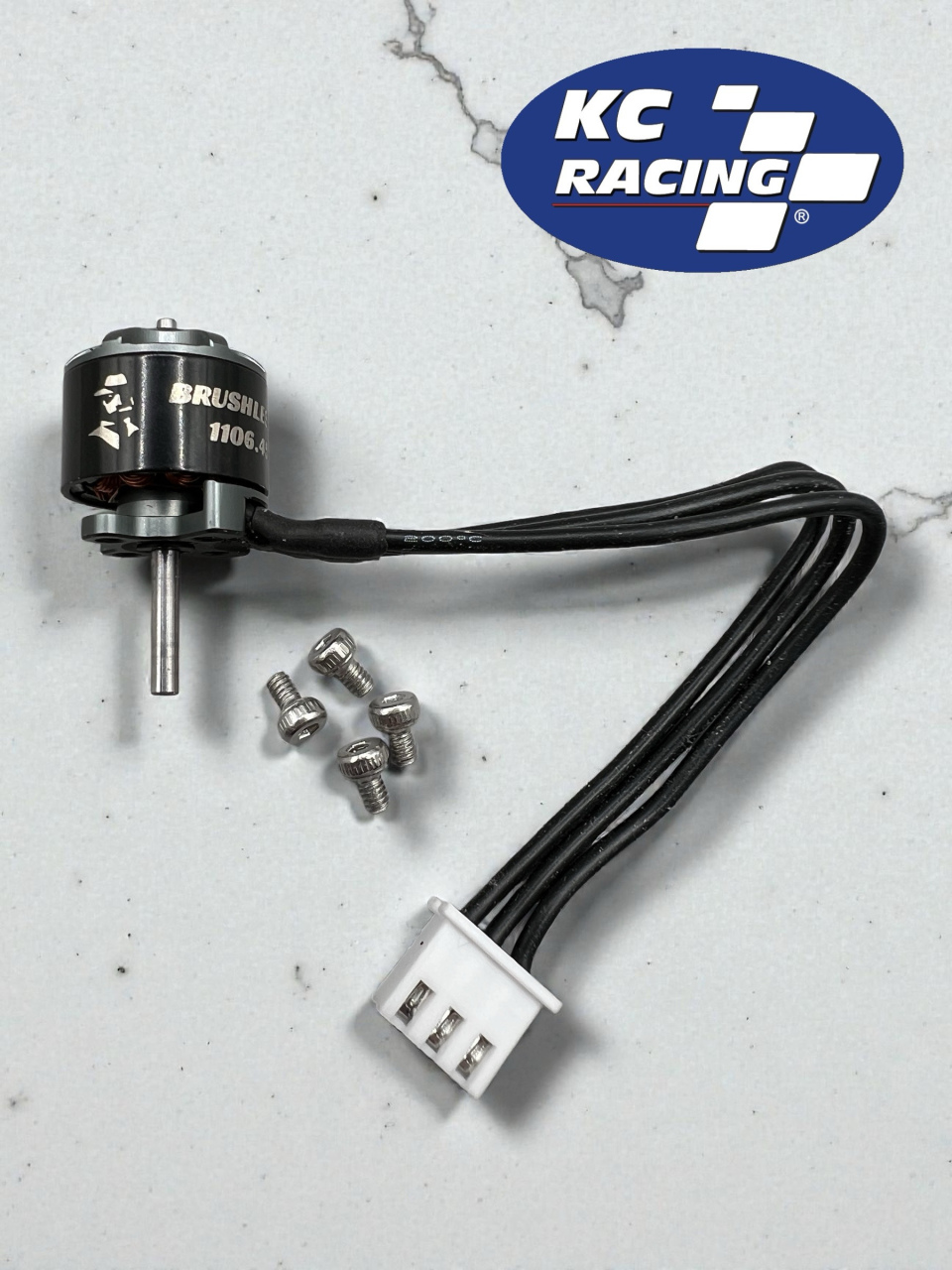

Includes four (4) M2x4mm Stainless Cap Head Screws for mounting. Make sure the screws DO NOT contact the motor winding.


Download the motor manual here

It is up to the user to observe BLDC heat, ESC compatibility to preventing cogging and use of suitable ratios to prevent ESC and/or BLDC failures.
